How to Choose Bases?
A lamp base (socket) is the structural component of an electric lamp that secures it in the fixture and delivers power to the light source. Choosing the correct base ensures your luminaire operates reliably and safely for many years.
Key Functions of a Lamp Base:
- Provides mechanical support to hold the lamp firmly in the fixture.
- Establishes the electrical connection between lamp and socket.
- Allows quick and safe lamp replacement.
Because different fixtures require different base types, it’s essential that the lamp’s base exactly matches the socket in your light or chandelier for proper operation.
Lamp Bases for Bulbs: Purpose, Markings, and Advantages
Bayonet (pin) - and - screw bases.

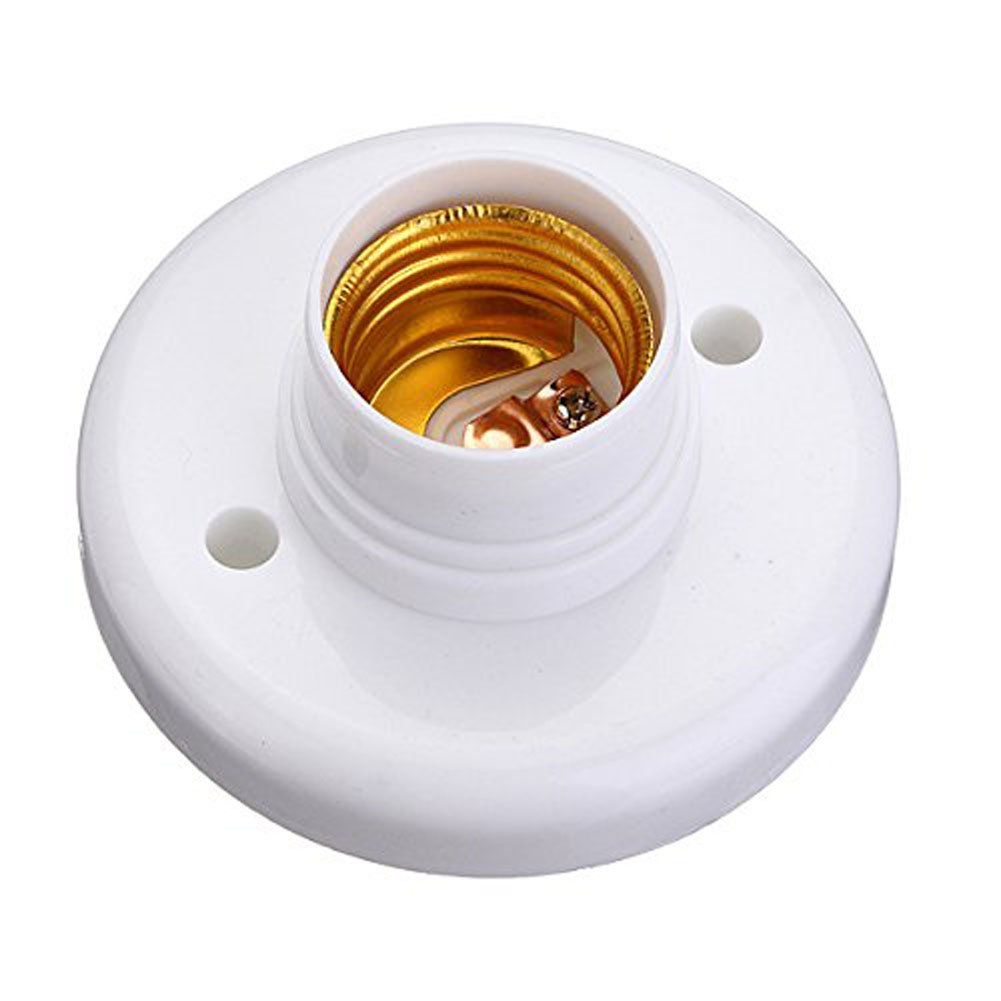

Advantages of Screw (E‑type) Lamp Bases
- Easy Replacement: Simply twist out the lamp - no tools required for quick, hassle‑free swaps.

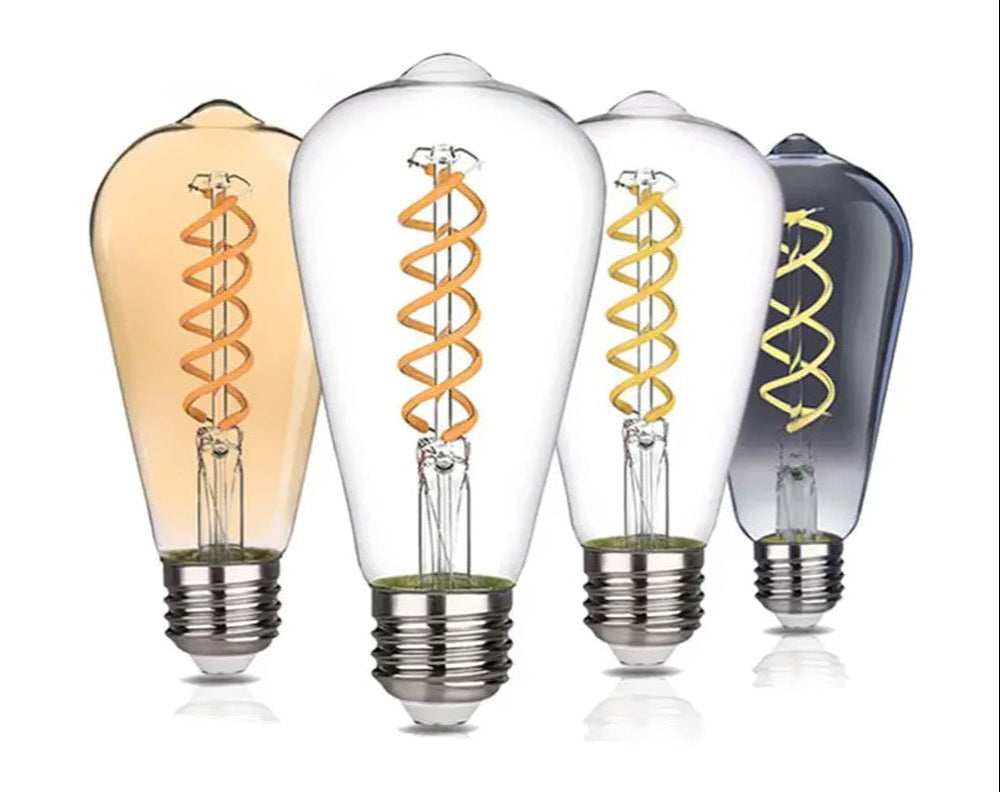

- Universal Standardization: Widely available in sizes like E14, E27, and E40, so lamps from any manufacturer fit the same sockets.
- Broad Compatibility: Supports incandescent, CFL, LED, and even some fluorescent lamps, giving you a vast choice of light sources.
- Reliable Electrical Contact: The metal threads ensure a solid connection for stable, uninterrupted operation.
- Effective Heat Dissipation: Larger bases (e.g., E27, E40) help draw heat away from the lamp, allowing use of higher‑wattage bulbs safely.
Advantages of Screw Bases
Compact Size: Enables miniature lamps ideal for spotlights, furniture integration, and decorative accents.
Quick Installation: Lamps simply push in and twist out, making frequent changes or maintenance effortless.
Reliable Contact: Pins ensure a snug electrical connection, critical for low‑voltage lamps (e.g., 12 V).
Versatile Form‑Factors: Available in various pin spacings (G4, G9, GU10, etc.), suitable for LED, halogen, fluorescent, and specialized bulbs.
Design Flexibility: Small footprint and multiple configurations allow use in complex, built‑in, or suspended fixtures.
Enhanced Safety: Some types (like GU10) feature a locking twist mechanism that prevents the lamp from falling out when the fixture vibrates or tilts.
Advantages of Pin (Bayonet) Lamp Bases
The marking of lamp bases is standardized by international norms (IEC 7004) and consists of Latin letters and numbers. The letters indicate the base type, and the numbers specify its size (thread diameter or pin spacing).
Lamp Base Markings:
E – Edison screw base (e.g., E27 means a 27 mm thread diameter)
G – Pin (bayonet‐pin) base (e.g., G4 means a 4 mm pin spacing)
B – Bayonet (push‐and‐twist) base
R – Recessed‐contact base (contacts set into the cap)
S – Sofit (small, tubular) base
P – Parabolic (focusing) base
T – Telephone‐style base
K – Cable base (with wires instead of a rigid cap)
W – Base‑free lamps (pin‑less, directly wired)
E14 – Edison screw base with a 14 mm thread diameterG9 – Pin base with a 9 mm spacing between contacts
Lamps with G9 or G4 pin bases are the ideal choice for use in designer fixtures and chandeliers.
Pin bases enhance the secure mounting of lamps thanks to several design features:
Firm Lock‑in: The lamp’s pins insert into matching holes in the socket, creating a tight, wobble‑free fit. This design prevents the lamp from accidentally falling out and makes it more resistant to vibration.
Minimal Fragile Parts: With their compact form and lack of protruding elements, pin bases are less prone to mechanical damage—resulting in longer service life and consistent performance.
Reliable Electrical Contact: The metal pins serve both as the mounting mechanism and as conductors, ensuring steady power delivery and reducing the risk of sparking or poor connections.
Quick and Easy Installation: Pin‑base lamps push in and twist out effortlessly, ideal for frequent replacements or maintenance, and help protect both the socket and the lamp from damage.
Specialized Variants: Some pin‑bases (for example, GU10) include extra locking tabs or flanges for added security—crucial in recessed, pendant, or vibration‑prone fixtures.
Overall, pin bases offer exceptionally reliable mounting and stable operation—even under vibration, tilting, or tight‑space conditions—making them the go‑to choice in modern downlights, recessed fixtures, and designer lighting systems.
Versatility: Standardization lets you use bulbs from any manufacturer in the same fixtures.
Safety: Secure mounting and solid electrical contact minimize the risk of short circuits and sparking.
Easy Replacement: Most bases allow you to swap a burnt‑out bulb quickly no special tools needed.
Wide Selection: A variety of base types supports everything from incandescent to LED and fluorescent lamps.
Specialization: Certain base types are designed for specific applications, such as automotive headlights, decorative lighting, or industrial fixtures.
